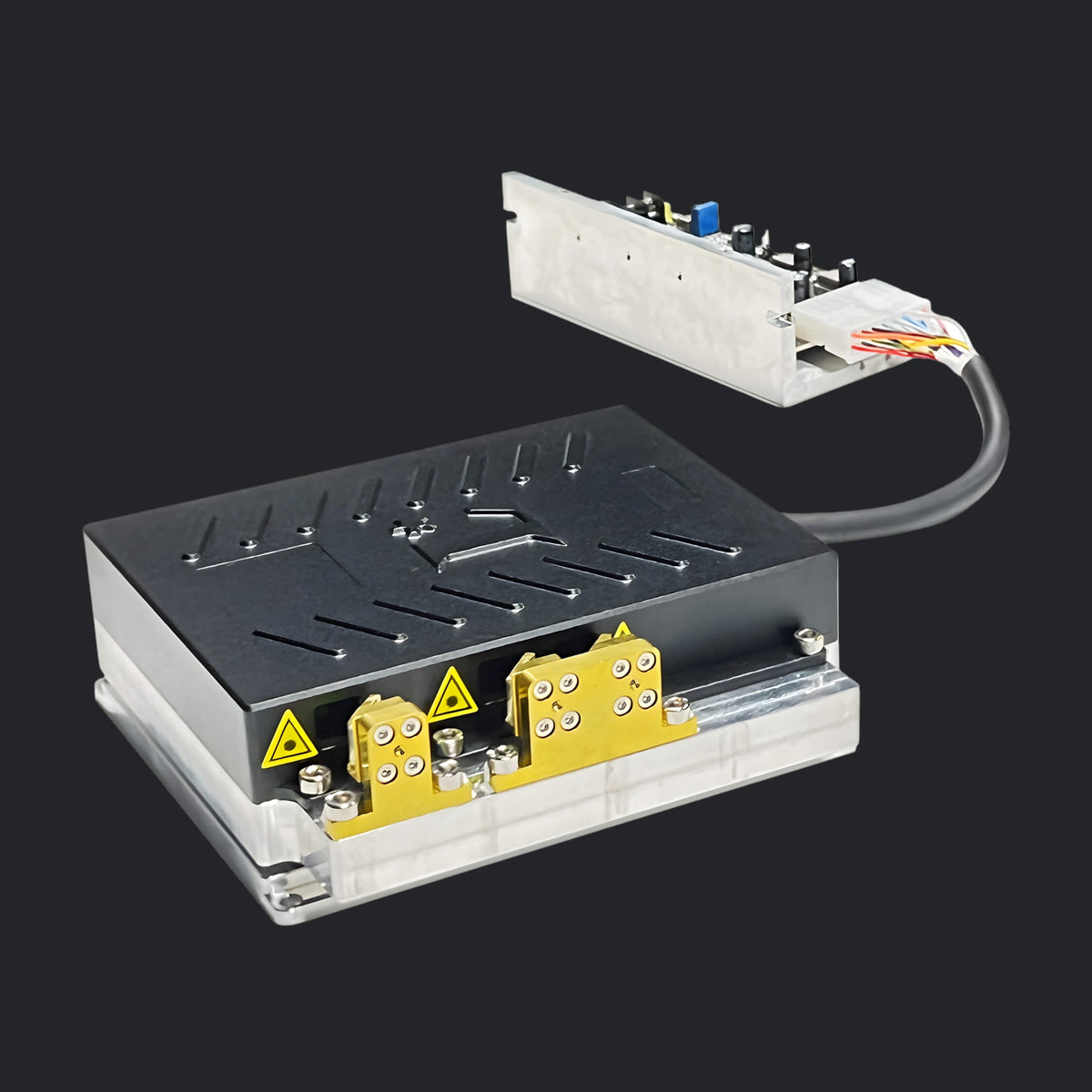

SM10 Fiber Beam RGB Laser Module 10W 15W for Laser Projection
€947,88
- Free EU shipping over €60
- 14-day returns
- Climate-positive checkout
- Secure payment
Details
10W RGB Laser Module Built for Laser Projector Integration
The SM10 is a 10W RGB laser module for laser projector integration, custom optical systems, and OEM laser builds. It works as a compact full-color light source for a laser light projector, RGB projection equipment, and integrated laser systems. This laser module is easier to install inside a projector housing or custom enclosure, making this RGB laser module a good fit for engineering teams, manufacturers, and buyers building a rgb laser projector or other laser projectors. The page remains focused on SM10 RGB laser module, 10W RGB laser module, and laser projector.
Full-Color RGB Output with 638nm, 525nm, and 450nm Wavelengths
RGB Configuration: The SM10 uses 638±5nm red, 525±5nm green, and 450±5nm blue for full-color output.
Power Distribution: The manual lists approximately 2.8W red, 3.2W green, and 5W blue, forming a complete RGB 10W output system.
Color Performance: This wavelength combination supports bright, balanced color output for rgb laser, laser projection, and integrated display systems.
Projection Benefit: For buyers searching for a reliable light source for a laser light projector or rgb laser projector, this wavelength setup offers practical full-color performance.
Professional Fit: It is suitable for projector builders, laser equipment manufacturers, and system integrators who need a stable RGB laser source.
Fiber-Shaped Beam for Cleaner Optical Control
Beam Design: The SM10 uses fiber shaping, which helps support a more controlled beam profile in projection and integration applications.
Exit Spot: The light spot at exit is approximately 4.5 × 7mm, which supports compact optical alignment and precise module placement.
Distance Spot Size: The manual lists the spot at 16 × 20mm at 10 meters and 50 × 32mm at 20 meters.
Beam Divergence: The listed 1.0mrad divergence supports better beam control for laser projector systems and precision laser projection builds.
Application Value: For buyers comparing beam quality in stage lasers, projector engines, or professional RGB modules, controlled optical performance remains a major advantage.
0–5V Analog Modulation and DC24V Input for Easier System Matching
Analog Control: The SM10 supports 0–5V analog modulation, making it easier to match with controlled laser systems and custom RGB installations.
Power Input: It runs on DC24V, which fits common engineering and industrial system requirements.
Warm-Up Speed: The warm-up time is listed at less than 1 minute, helping the module reach operating condition quickly.
Power Stability: The manual lists power stability under 1 rms over 4 hours, supporting stable output during longer operation.
System Use: These features make the SM10 a practical choice for laser stage lighting, projector integration, and advanced RGB light source projects.
Compact Size and Practical Engineering Value for OEM Projects
Module Size: The module size is approximately 144(L) × 139(W) × 50(H) mm, helping with tighter system layouts and projector housing integration.
Driver and Power Supply: The manual also lists the matching driver and power supply dimensions, which helps with installation planning.
Long Service Life: The expected life is 10,000 hours, supporting longer-term use in engineered systems.
Warranty Coverage: The manual lists a 2-year warranty period, adding confidence for OEM buyers and system builders.
Integration Benefit: For customers building a compact laser projector, upgrading a laser light projector, or sourcing a rgb laser engine, this size-to-output balance is highly practical.
Specs
General
Model: SM10
Product Type: SM10 RGB laser module / 10W RGB laser module / laser module / laser projector source module
Recommended Applications: Laser projector integration, laser projection, stage systems, stage laser lights, RGB display systems, OEM laser builds
Laser Source
Red Wavelength: 638±5nm
Green Wavelength: 525±5nm
Blue Wavelength: 450±5nm
Red Output Power: 2.8W
Green Output Power: 3.2W
Blue Output Power: 5W
Total Output Power: RGB 10W
Optical Performance
Spot Type: Fiber shaping
Focus Mode: Short medium focus / short throw / short medium focus
Light Spot at Exit: 4.5 × 7mm
Light Spot at 10 Meters: 16 × 20mm
Light Spot at 20 Meters: 50 × 32mm
Beam Divergence: 1.0mrad
Light Output Height: 40mm
Electrical
Working Mode: CW
Power Supply: DC24V
Analog Modulation: Approx. 0.12V–4.95V
Warm-Up Time: less then 1 minute
Power Stability:less then 1 rms over 4 hours
Durability
Working Temperature: -20°C to 40°C
Life Expectancy: 10,000 hours
Warranty Period: 2 years
Dimensions
Module Size: 144(L) × 139(W) × 50(H) mm
Driver Size: 140(L) × 92(W) × 42(H) mm
Power Supply Size: 173(L) × 63(W) × 32(H) mm
FAQ
Q: Is SM10 hard to install?
A:No—SM10 is designed to be easy to install and compatible with most common projector housings. We also provide an installation video tutorial.
Q: Will SM10 fit my existing laser projector chassis?
A:In most cases, yes. SM10 is designed for wide housing compatibility. Share your chassis photo/dimensions for a quick fit recommendation.
Q: What is the SM10?
A:The SM10 is a 10W RGB laser module designed for laser projector integration, RGB optical systems, and OEM laser builds.
Q: Is this a complete laser light fixture?
A:No. The SM10 is a laser module, not a finished enclosure-style fixture. It is intended for integration into a laser projector, laser light projector, or other custom equipment.
Q: What wavelengths does the SM10 use?
A:It uses 638±5nm red, 525±5nm green, and 450±5nm blue.
Q: What is the output power distribution?
A:The manual lists approximately 2.8W red, 3.2W green, and 5W blue, forming a total RGB 10W output.
Q: Does this RGB laser module support analog control?
A:Yes. It supports 0–5V analog modulation, which helps with controlled RGB integration.
Q: What power input does the module require?
A:The SM10 uses DC24V power input.
Q: What kind of beam performance does it offer?
A:The module uses fiber shaping, with a listed 1.0mrad beam divergence and a 4.5 × 7mm exit spot.
Q: Is this module suitable for laser projector integration?
A:Yes. It is specifically well suited for laser projector integration, compact optical assemblies, and custom RGB source projects.
Q: Can it be used in stage-related systems?
A:Yes. It can be used as a source module in stage lasers, stage laser lights, and some laser stage lighting systems where a compact RGB laser source is needed.
Q: Does it require external cooling?
A:The manual recommends taking external heat dissipation measures to help protect the module from excess temperature.
Q: What environment is recommended for operation?
A:The manual recommends a dry, clean, and static-free environment, while avoiding excessive humidity, high temperature, vibration, and impact.
Q: What is included with the module?
A:The package includes the module, driver, power supply, and user manual.
